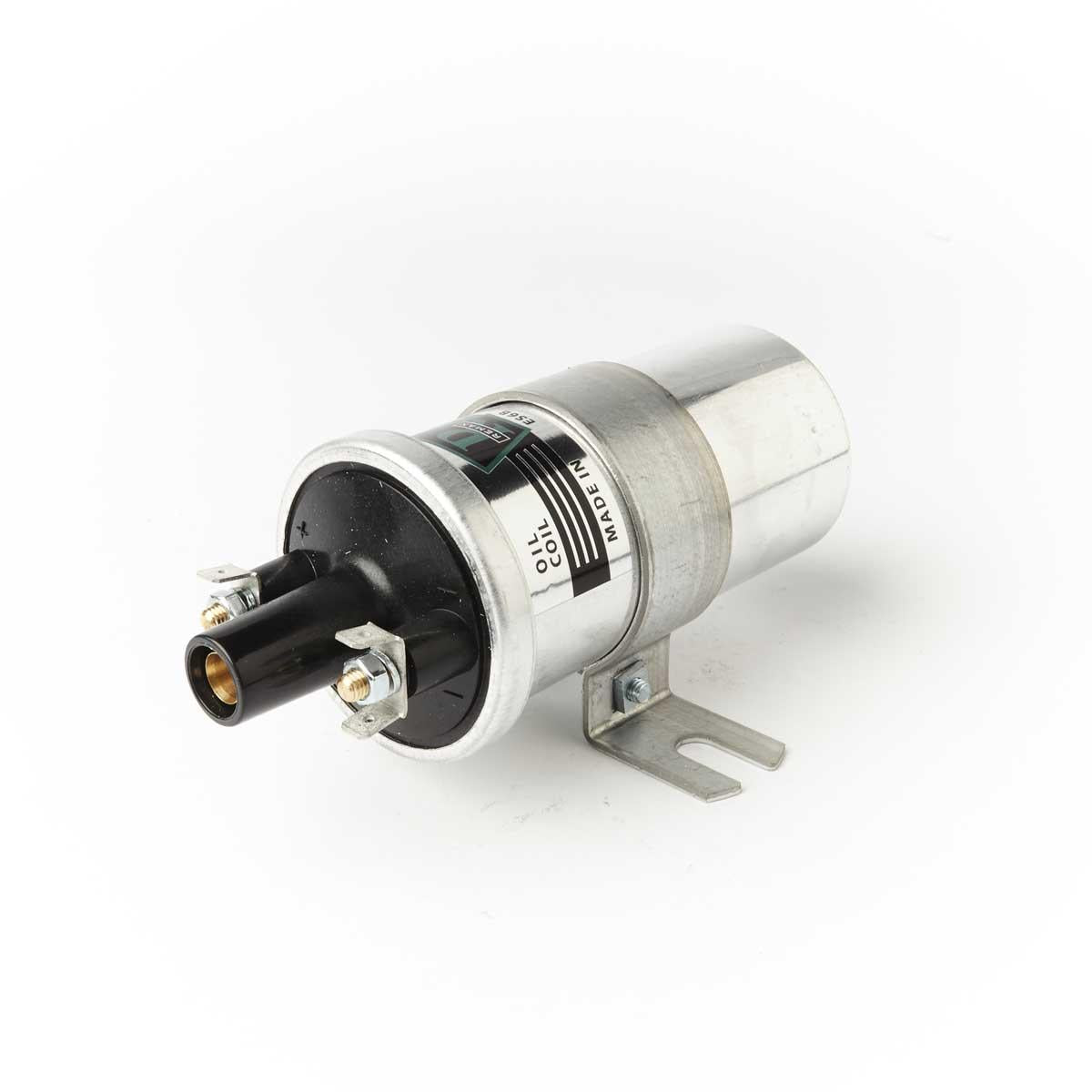

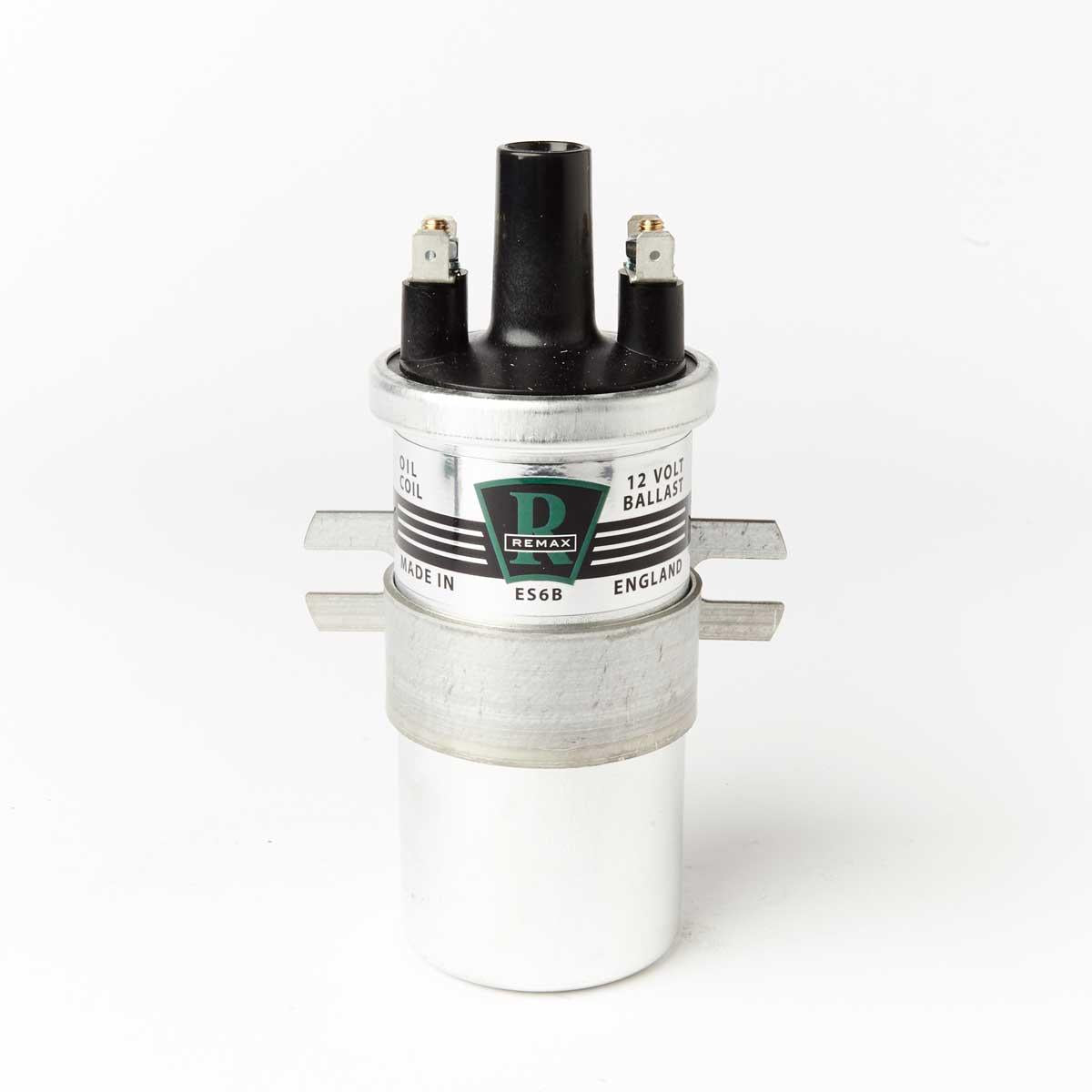

Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In
  • Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In
  • Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In
  • Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In
  • Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In
  • Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In
  • Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In
Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In

Remax ES6B Ignition coil – replaces Lucas DLB102 – 12 V, standard, ballast ignition, Push In

Part number
ES6B
EAN / barcode
5054716705150
Brand
Remax
Retail price ex VAT £29.99 GBP £35.99 GBP inc UK VAT at 20%

Tax treatment for overseas orders is calculated at checkout.
Pack quantity
1

In stock

Pack quantity describes the recorded contents. Check the product description and quantity rules before ordering.
Log inApply for a trade account

Wholesale prices and ordering require an approved trade account. A customer login alone does not grant trade approval.

Replaces / reference numbers
  • Lucas DLB102

Check the complete reference and specification against the fitted part.

Fits / applications
Application: Car

Choose make, model and the year as listed in the Remax application catalogue. Engine details are not recorded in this data. Check the fitted unit and all listed alternatives before ordering.

Technical specifications
Voltage12V
Fitting typePush In
Country of originENGLAND
Coil typestandard
HT connectionPush In
Primary resistance1.385 Ω
Secondary resistance9.07 kΩ
ConstructionOil filled
MountingMounting Bracket included
Number of poles2
For ballast ignitionYes
Description

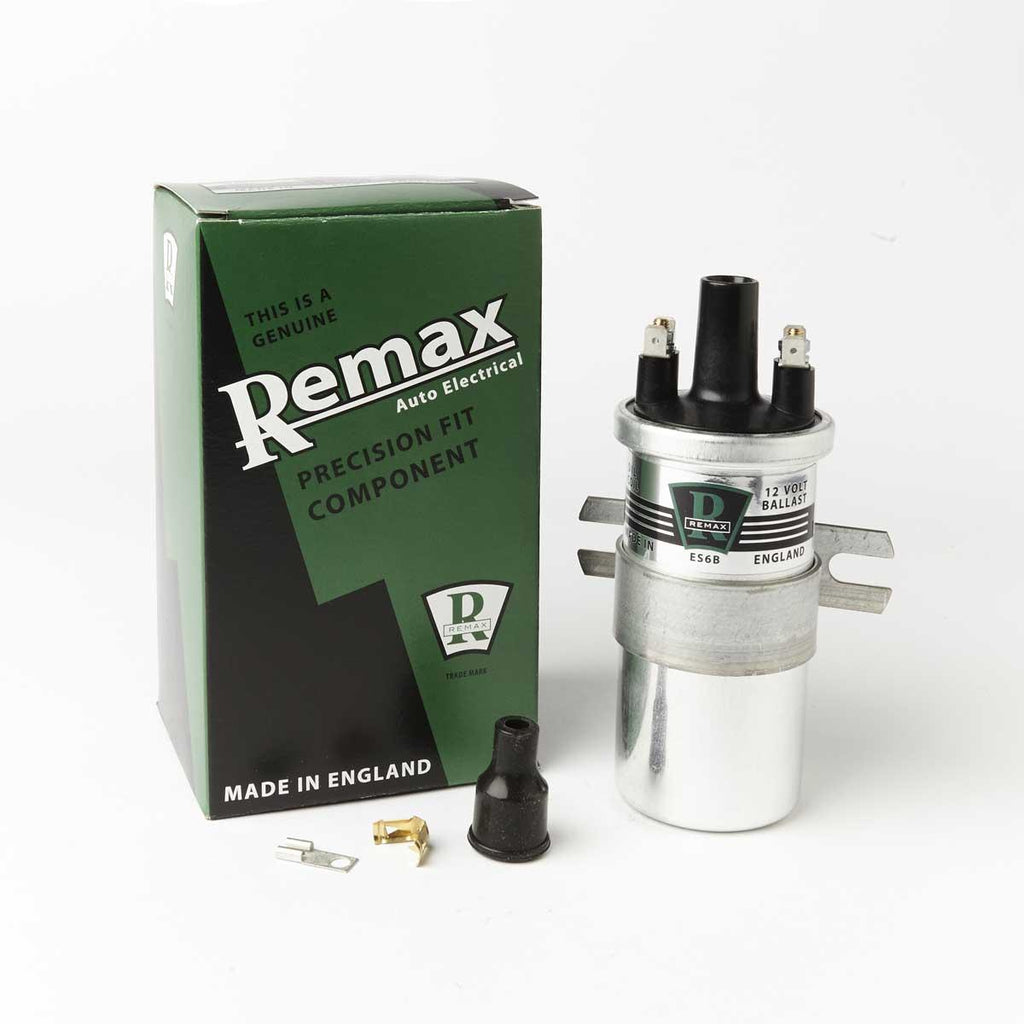

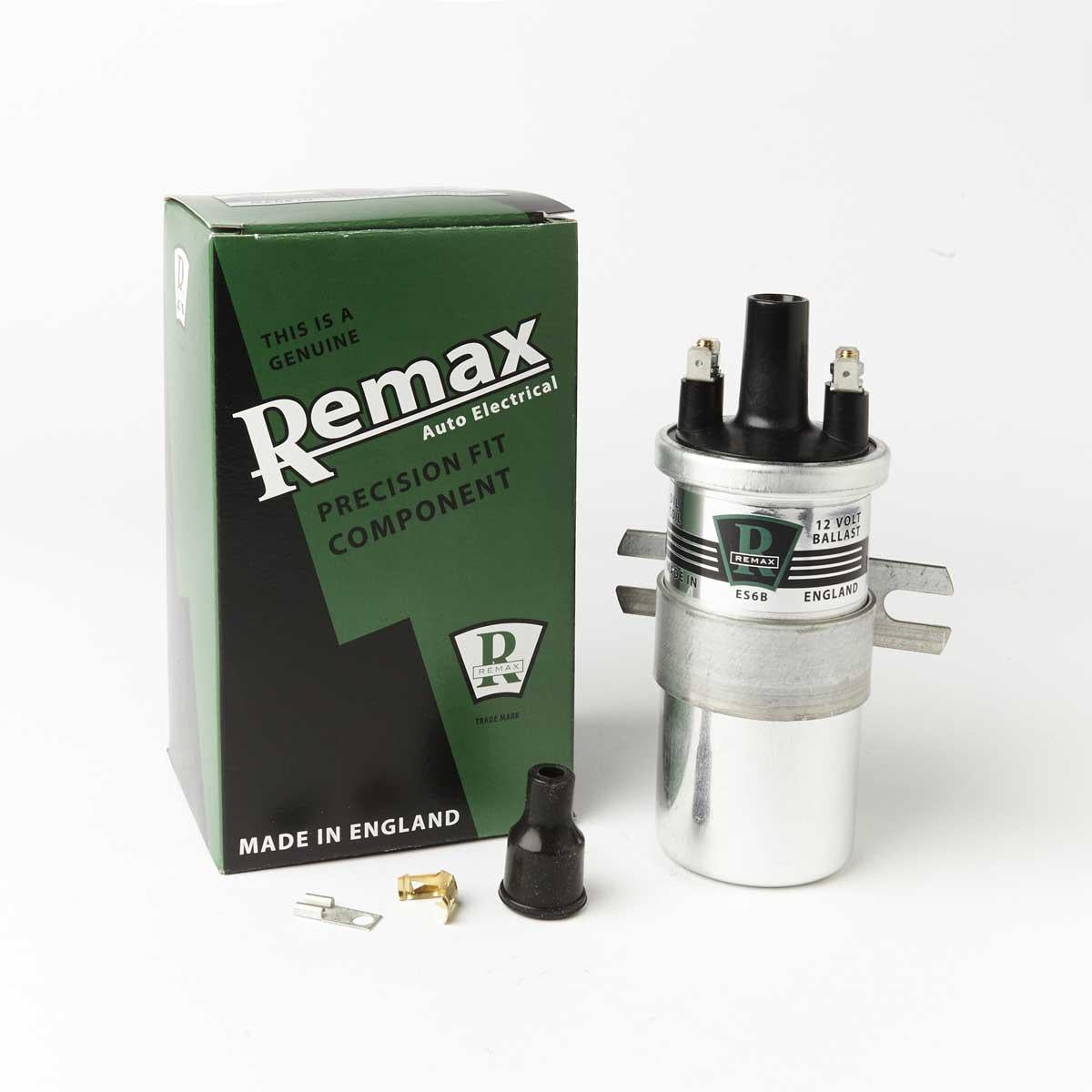

12 V Remax ES6B ignition coil: standard type; Push In HT connection; for ballast ignition systems. Supplied in a Remax box.

Included fittings and accessories

  • HT13 Crimp push in terminal
  • HT14 Coil boot.
  • 2x M5 terminal nuts & washers
  • 2x Double male spade terminals

Additional product notes

Push in HT connector.

Source value — check before ordering: Output voltage @25pF/1M = 11,34 Volts
